The best choice is solid rotor technology
The age of the gearbox is slowly starting to fade, and a new standard is on the rise. For the first time, the superior solid rotor technology presently available only for a few large-volume customers is now being offered as standardized packages. Now unrivaled cost and compact size advantages are easily affordable for a wider range of high-speed applications.
Setting the new standard
A solid rotor induction motor is a unique type of induction motor with a non-laminated rotor construction. The stiff construction offers unmatched stability and balance, providing exceptional rotating system reliability for all types of high-speed applications. In its simplest form, a solid rotor is purely a machined ferromagnetic steel bar. To increase performance, enhancements may be applied, such as slitting, adding a high conductive end ring or even including a rotor cage.
The sophisticated solid rotor construction gives superior mechanical strength to avoid any unbalanced vibrations. Additionally, it tolerates high centrifugal forces and aggressive chemicals, making it exceptionally reliable and durable.
Based on more than two decades of experience, this same technology is now available as standardized high-speed electric motors paired with drives in powers of 300 to 1,500 kW and speeds up to 20,000 rpm.

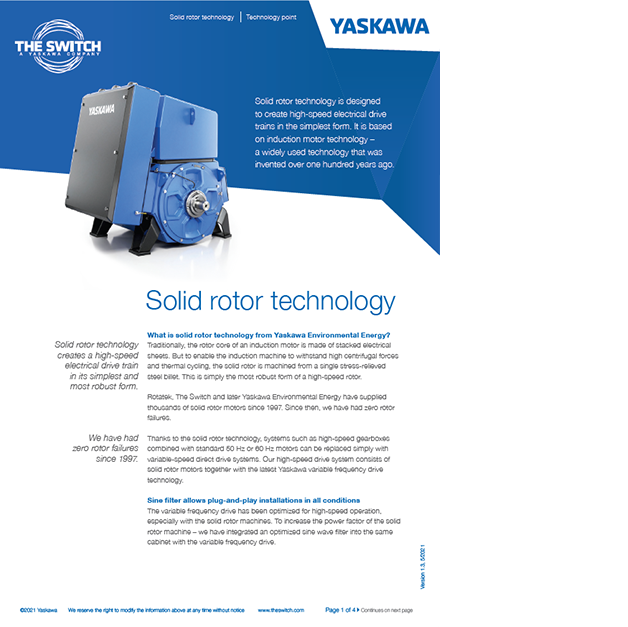

To learn more about the benefits of this technology, download our whitepaper:
In this whitepaper, you will learn:
- Why solid rotor technology is the best choice for turbo applications.
- How to reduce the amount of components and lower maintenance needs significantly.
- How to simplify your system considerably.
- How to gain full control over the entire operating range.
Eliminate the gearbox
The robust high-speed motor eliminates the need for a gearbox, while allowing the application to reach higher speeds and availability.
Fewer components, lower maintenance needs
Mechanical problems associated with gearboxes are no longer an issue. Fewer components also reduce the need for extra parts and maintenance.
Superior durability, unsurpassed efficiency, 50% more compact
The solid rotor construction provides high mechanical strength and stability, so higher motor efficiencies can be reached. The structure is also more compact and lighter in weight, requiring up to 50% less space than a conventional design.
